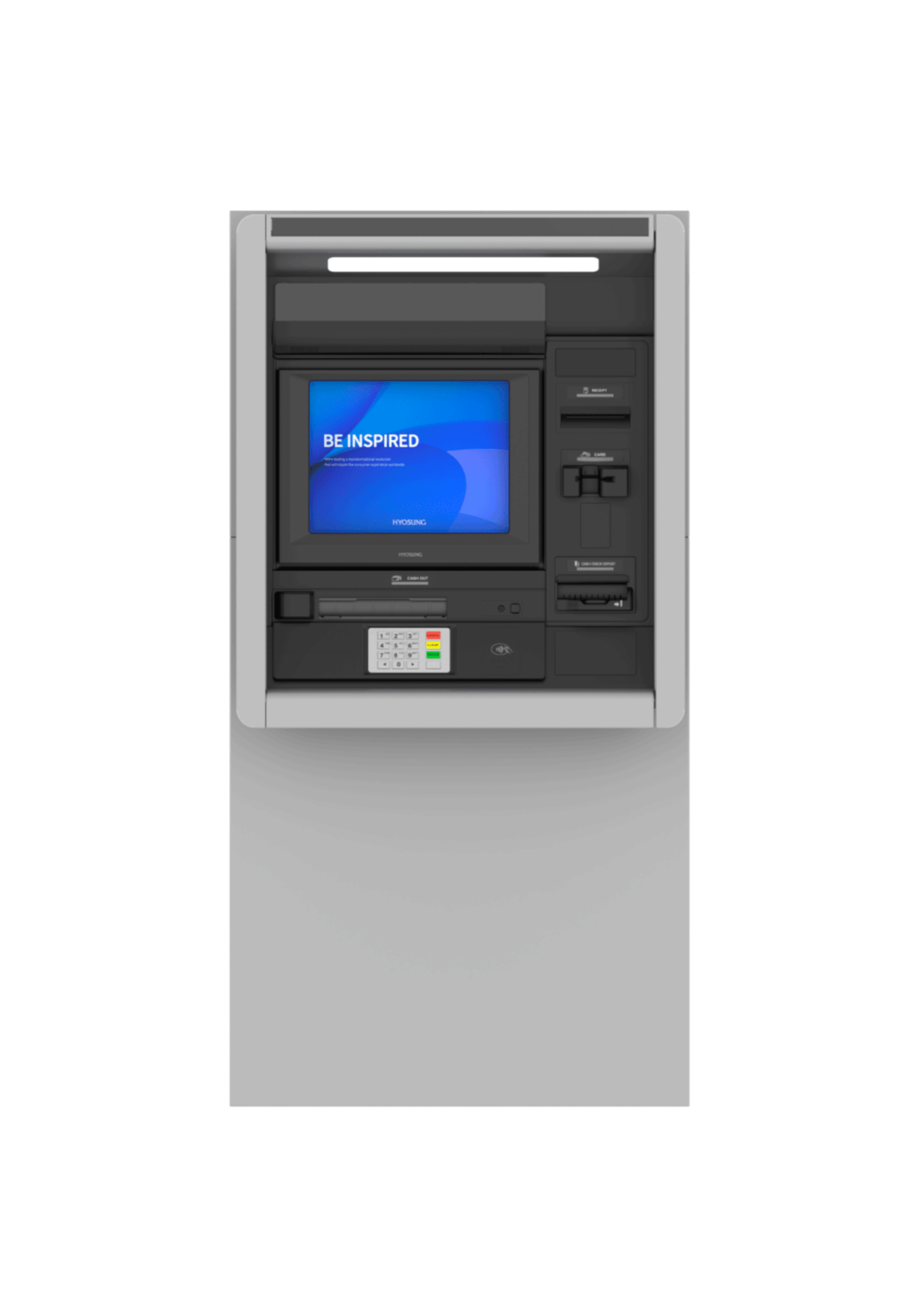

Through The Wall | 7T


Designed to provide unprecedented reliability, the 7T is unparalleled in the market. This full-function through-the-wall ATM can easily be upgraded from a cash dispenser to deposit automation and supports large volume transactions. The 7T’s highest uptime and minimum maintenance has helped make Hyosung the fastest growing ATM company.

High availability

The innovative design and the use of Hyosung manufactured core technologies allows for fast, easy replenishment and reduced down time. The 7T is designed to provide reliability that is unequaled in the market, with minimum maintenance and maximum uptime.


The Series 7 ATMs can also be easily upgraded from a cash dispenser to deposit automation should an institution decide to implement the technology later.


High capacity, cash dispense capability and the ability to support large volume transactions.

security options

Hyosung ATMs defend against physical and logical attacks with a multi-level locked down operating system, anti-skimming, white-listing, and encryption.



  • Height: 54.4″ (1383 mm)

  • Width: 28.4″ (721 mm)

  • Depth – Safe: 32.1″ (815 mm) w/ Collar: 11.3″ (288mm)

  • Weight: 1,576.3 lbs (715 kg)

environmental conditions

  • Temperature: 32°F – 104°F (with Heater 14°F – 104°F)

  • Humidity: 25%-85%

power supply

  • AC 100V ~ 127V±10%, 200V ~ 240V±10% 50/60 Hz


  • Microsoft Windows 10 Platform

  • Hyosung MoniPlus including Hyosung MoniGuard Security

  • Hyosung MoniCRM

  • Hyosung Connect

  • Hyosung MoniManager

custumer interface

  • 15″ LCD Touch Screen

  • Privacy Filter

  • PCI Compliant EPP

  • Headphone Jack with

  • Volume Control

  • Card Reader – DIP, EMV Compliant

  • Contactless – Integrated Reader (via Card, Smartphone, or Smartwatch)


  • 3.1″ Graphical Thermal Receipt Printer

media technology

Cash Dispenser

  • Configurable denominations up to 4 high capacity dispense cassettes
  • 3,000 Notes per Cassette
  • Bundle Present, Bundle Retract
  • Note By Note Rejection
  • Automatic Shutter


Cash & Check in Module (CCIM)

  • Maximum capacity mixed 50 cash/checks per bundle per transaction
  • Up to 2,000 notes cassette capacity
  • Up to 2,000 checks cassette capacity
  • Reject and Retract Capability


  • UL291 Level 1 Safe

  • Seismic & Heat Detector

  • Locking Device – Elecronic, Mechanical Combination Lock, Kaba Mas Cencon Lock (optional)

  • IP or Analog Security Camera (optional)

  • Awareness Mirror

  • Hyosung MoniGuard Solutions

  • Trusted Platform Module (TPM)


  • Rear Access

  • State of Health Indicators for all Modules

additional features

  • Backup Battery Reserves the Last Transaction & Safe Shutdown

  • Heater Supported Operating

  • Barcode Reader (optional)
